MAZDA 323 | 626 | 929 | MX3 | MX6 | RX7 | MIATA 1993/97: Especificaciones tecnicas de afinamiento

MAZDA 323 | 626 | 929 | MX3 | MX6 | RX7 | MIATA | MILLENIA | PROTEGE

Especificaciones tecnicas - Afinamiento - Tune-Up - 1993/97

Tome nota de lo siguiente:

Cuando quiera hacer mediciones dentro de los componentes del distribuidor; use herramientas "no magneticas"

Los medidores, calibradores etc. de material que conducen magnetismo; daniaran las partes electronicas.

Estas fallas, se manifestaran en forma inconstante, dias despues.

El cobre, el bronce, el aluminio, no conducen magnetismo.

AÑO MOD	Cod Motor	MOTOR	Bujia GAP	TIEMPO DE ENCENDIDO		Presion [PSI]	RPM RALENTI		Ajust Vals
AÑO MOD	Cod Motor	LT [CC]	EN PULG	T.Man	T.Aut	BOMB-GAS	T.M	T.A	AD / ESCAP
1993	13B	1.3 [1308]	0.056	[10]	[10]	NA	750	750	N/A
1993	B6E	1.6 [1597]	0.041	6-8B, [6]	6-8B, [6]	30-38 [1]	750, [4]	750, [4]	HYD
1993	B6ZE	1.6 [1597]	0.041	9-11B [3]	7-9B [3]	30-38 [1]	750	750	HYD
1993	BPD	1.8 [1839]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	750, [4]	750, [4]	HYD
1993	BPE	1.8 [1839]	0.041	4-6B [2]	4-6B [2]	30-38 [1]	750, [5]	750, [5]	HYD
1993	FS	2.0 [1991]	0.041	11-13B [2]	11-13B [2]	30-38 [1]	700 [2]	700 [2]	HYD
1993	JE-ZE	3.0 [2954]	0.041	11-13B [2]	11-13B [2]	30-38 [1]	700 [5]	700 [5]	HYD
1993	K8D	1.8 [1844]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	670 [2]	670 [2]	HYD
1993	KL	2.5 [2497]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	670 [2]	650 [2]	HYD
1994/95	13B	1.3 [1308]	0.056	[10]	[10]	NA	750	750	NA
1994/95	B6E	1.6 [1597]	0.041	6-8B [2]	6-8B [2]	30-38 [1]	750, [4]	750, [4]	HYD
1994/95	B6ZE	1.6 [1597]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	700 [3]	750 [3]	HYD
1994/95	BPD	1.8 [1839]	0.041	9-11B [2],7	9-11B [2],7	30-38 [1]	750, [4]	750, [4]	HYD
1994/95	BPE	1.8 [1839]	0.041	4-6B [2]	4-6B [2]	30-38 [1]	750, [4]	750, [4]	HYD
1994/95	FS	2.0 [1991]	0.041	11-13B [2]	11-13B [2]	30-38 [1]	700 [2]	700 [2]	HYD
1994/95	JE-ZE	3.0 [2954]	0.041	11-13B [2]	11-13B [2]	30-38 [1]	700, [5]	700, [5]	HYD
1994/95	K8D	1.8 [1844]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	670 [2]	670 [2]	HYD
1994/95	KL	2.5 [2497]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	670 [2]	650 [2]	HYD
1995	K8D	1.8 [1844]	0.041	9-11B [2]	9-11B [2]	30-38 [1]	700 [3]	750 [3]	HYD
1995	KJS	2.3 [2255]	0.030	6B [2]	6B [2]	39-48 [2]	670	650	0.011
1995	KLD	2.5 [2497]	0.041	9-11B [2]	9-11B [2]	39-45 [2]	670	650	HYD
1995	Z5D	1.5 [1489]	0.041	6-18B	6-18B	29-34 [1]	650-750	700-800	0.011
1996/97	BPD	1.8 [1839]	0.041	[2], [9]	[2], [9]	39-45 [1]	[2], [8]	[2], [8]	HYD
1996/97	FS	2.0 [1991]	0.041	11-13B [2]	6-18B [2]	37-46 [1]	650-750 [2]	650-750 [2]	HYD
1996/97	KJS	2.3 [2255]	0.030	6B [2]	6B [2]	39-48 [1]	600-700	600-700	0.011
1996/97	KL	2.5 [2497]	0.041	9-11B [2]	9-11B [2]	39-45 [1]	600-700 [2]	600-700 [2]	HYD
1996/97	KLD	2.5 [2497]	0.041	9-11B [2]	9-11B [2]	39-45 [2]	600-700	600-700	HYD
1996/97	Z5D	1.5 [1489]	0.041	6-18B	6-18B	29-34 [1]	650-750	700-800	0.011

Nota : La informacion sobre control de emisiones, contenida en la etiqueta,[engomado,calcomania,etc] pegada en alguna parte del compartimiento del motor; refleja los cambios hechos durante su produccion. Cualquier discrepancia con los datos contenidos en esta pagina, prevalecen las indicaciones de la etiqueta.

B] Antes del punto muerto superior

1] Presion se mide con la manguera de vacio conectada al regulador de presion- y rpm en ralenti o marcha minima

2] Conector 10 del terminal de diagnostico a tierra.

3] Con sistema de test selector, interruptor en posicion on

4] Transmision en parking y freno de mano aplicado [Canada]

5] Transmision en parking

6] MX3 - 9-11 Antes del TDC [punto muerto superior]

7] Miata/MX5 10B

8] Protege 700/800- Miata 800/900

10] Electronic Diustributor. 5A Leading. 20A Trailing

9] Protege "0" Miata 9-11B

HYD - Hidraulico; Sistema de regulacion de Valvulas - [valve lifter, botadores hidraulicos]

SOHC - 1 Arbol de levas sobre la cabeza -culata-

DOHC - Doble arbol de levas sobre la cabeza -culata-

EFI Electronic Fuel Injection

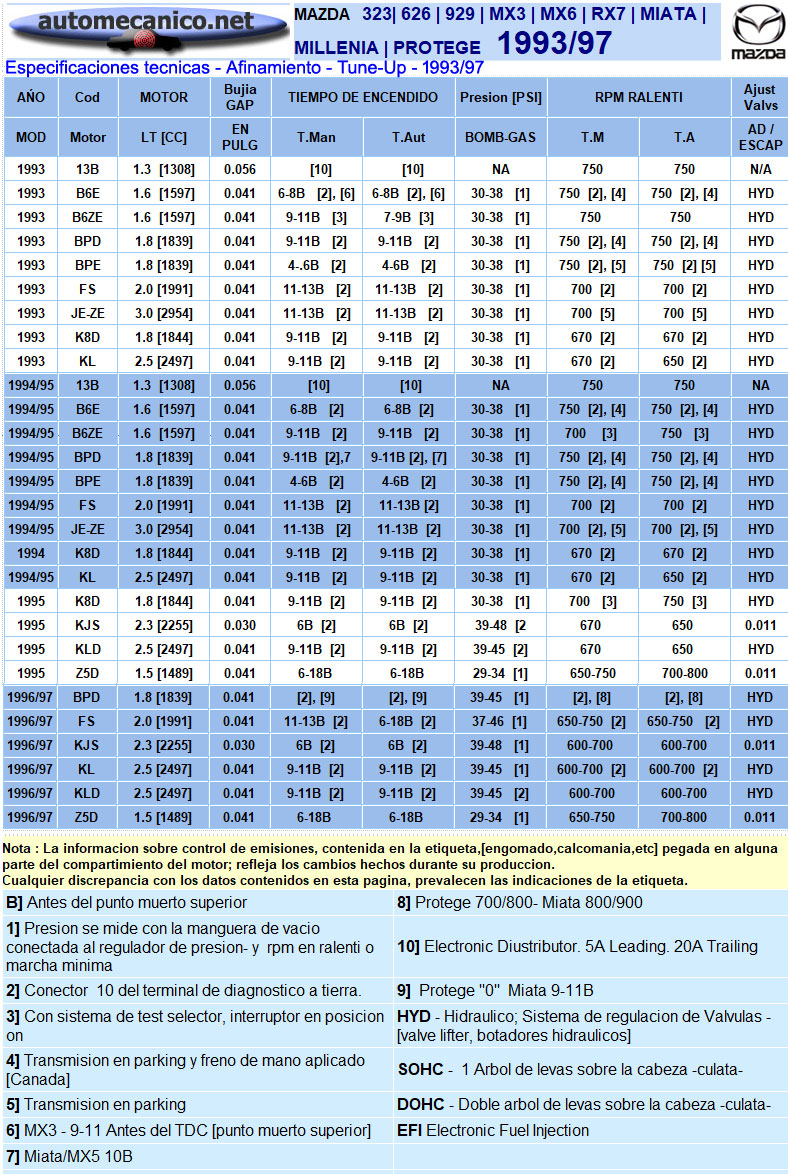

Mira la informacion en grafico....
